Belt Length Calculation Example (Step-by-Step with Real Numbers)
Understanding belt length calculation becomes much easier when you see a real example. Many technicians struggle not with the formula itself, but with applying it correctly in practical situations.
In this guide, we’ll walk through a complete belt length calculation example step by step using real numbers so you can calculate accurately and avoid common errors.
Belt Length Formula (Quick Recap)
The standard formula used to calculate belt length between two pulleys is:
L = 2C + (π/2)(D + d) + ((D − d)² / 4C)
- L = Belt length
- C = Center distance
- D = Larger pulley diameter
- d = Smaller pulley diameter
For a detailed explanation, read our belt length manual calculation guide.

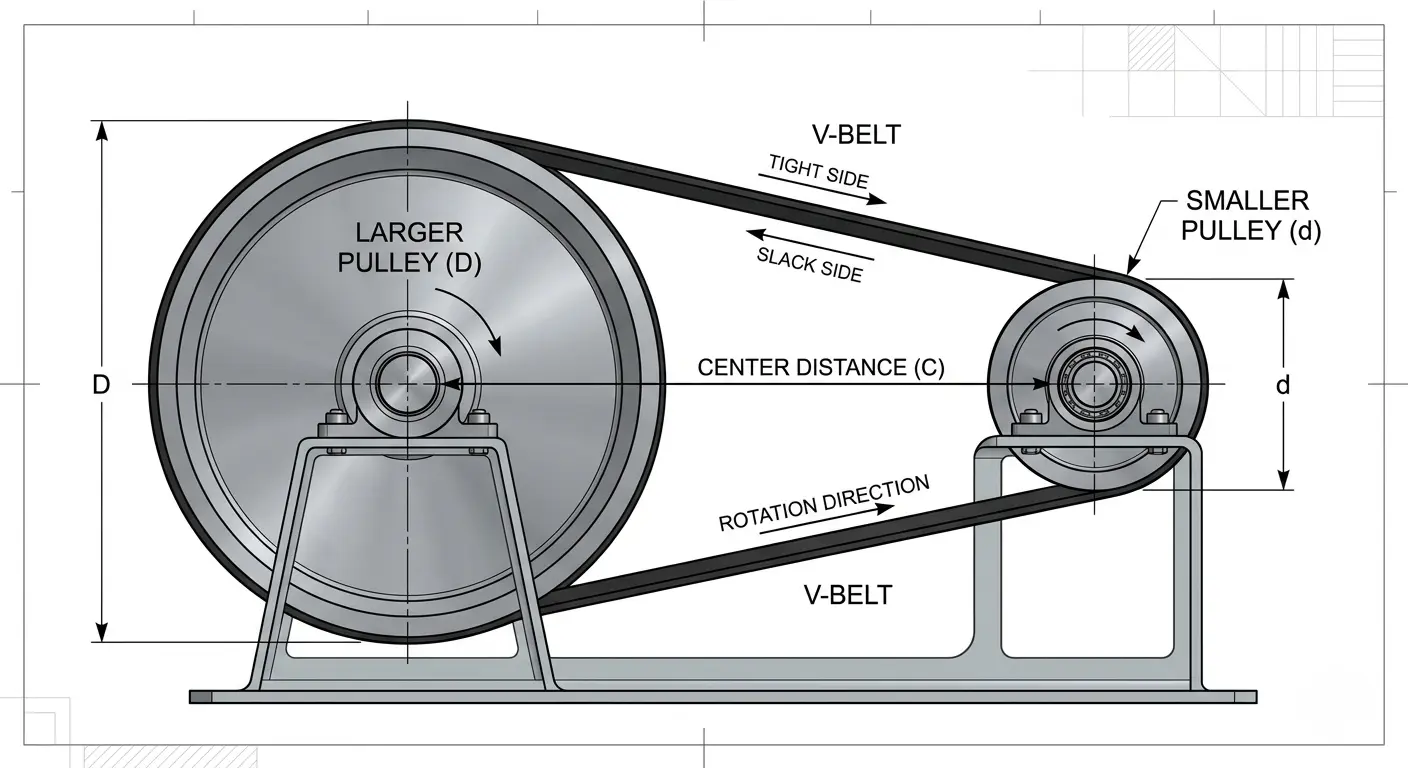

Step-by-Step Belt Length Calculation Example
Given Values:
- Large pulley diameter (D) = 250 mm
- Small pulley diameter (d) = 150 mm
- Center distance (C) = 600 mm
Step 1: Calculate First Part
2C = 2 × 600 = 1200
Step 2: Calculate Second Part
(π/2)(D + d) = 1.57 × (250 + 150) = 628
Step 3: Calculate Third Part
(D − d)² / 4C = (100²) / 2400 = 4.17
Step 4: Final Calculation
L = 1200 + 628 + 4.17 = 1832 mm
Final Result
Required Belt Length ≈ 1832 mm
Practical Tip for Real Applications
In real industrial setups, calculated belt length may not be exact due to belt tension, installation conditions, and measurement variations.
It is recommended to allow a 1–2% adjustment for proper fitting.
Common Mistakes in Belt Length Calculation

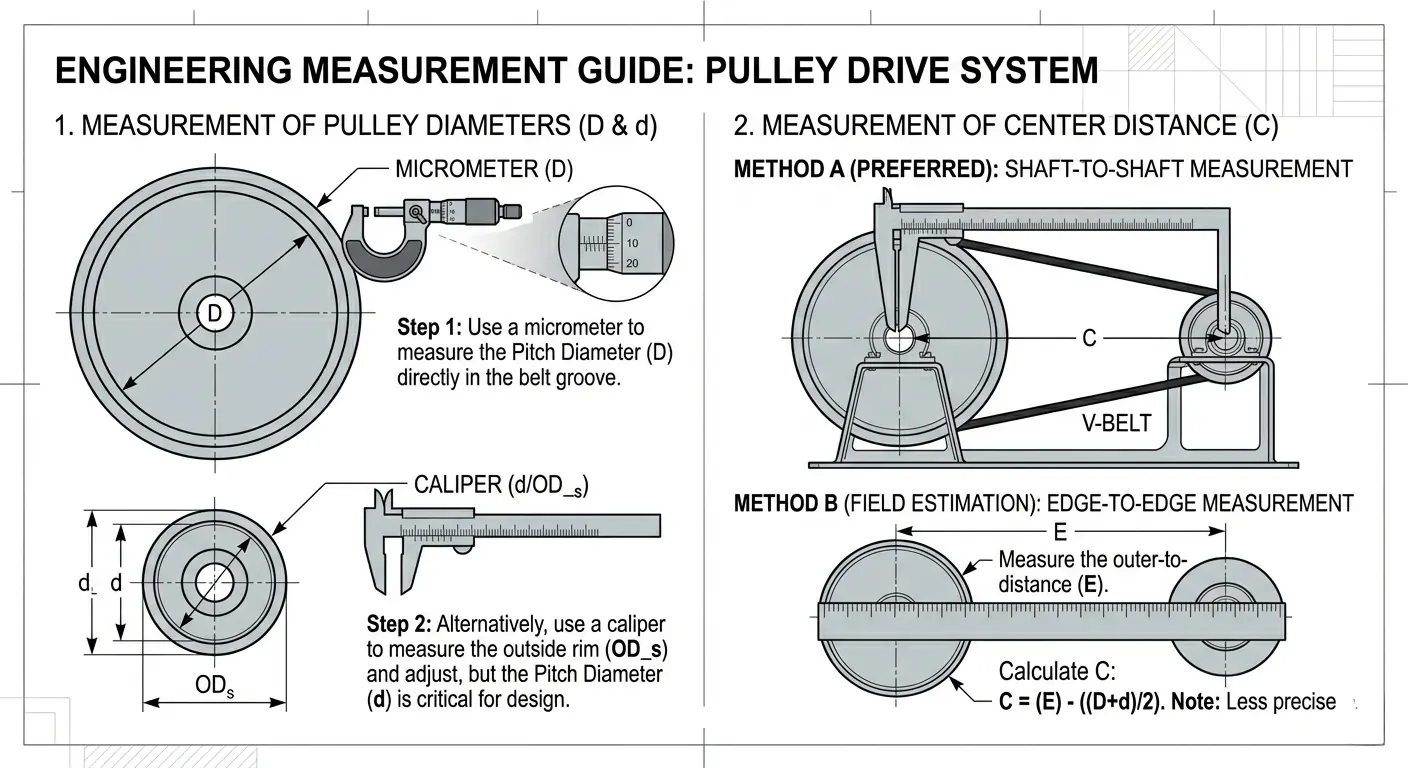

- Incorrect pulley measurement
- Wrong center distance
- Calculation errors
Learn more in our belt length calculation mistakes guide.
Manual Calculation vs Belt Length Calculator
Manual calculation helps understand the concept but can be time-consuming and error-prone.
For quick and accurate results, use our belt length calculator.
When Should You Use Manual Calculation?
- To verify calculator results
- When working in field conditions
- For troubleshooting belt issues
FAQs
How do you calculate belt length with an example?
By inserting pulley diameters and center distance into the belt length formula and solving step by step.
Why is my calculated belt length slightly different?
Differences can occur due to belt tension, wear, and installation conditions.
Is manual calculation better than a calculator?
Manual calculation helps understanding, but calculators provide faster and more accurate results.
What unit should be used for calculation?
Use consistent units such as mm or inches throughout the calculation.
Conclusion
A practical example makes belt length calculation easier to understand and apply in real situations.
Combining manual knowledge with tools ensures better accuracy and efficiency.
