How to Measure Pulley Center Distance (Step-by-Step Accurate Method)
Accurate pulley center distance measurement is critical for proper belt length calculation. Even small errors can lead to incorrect belt sizing, causing slippage, wear, or installation issues.
In this guide, you’ll learn how to measure pulley center distance step by step using practical methods used in real industrial environments.
To calculate belt length after taking the measurement, you can use our Belt Length Calculator.
What is Pulley Center Distance?

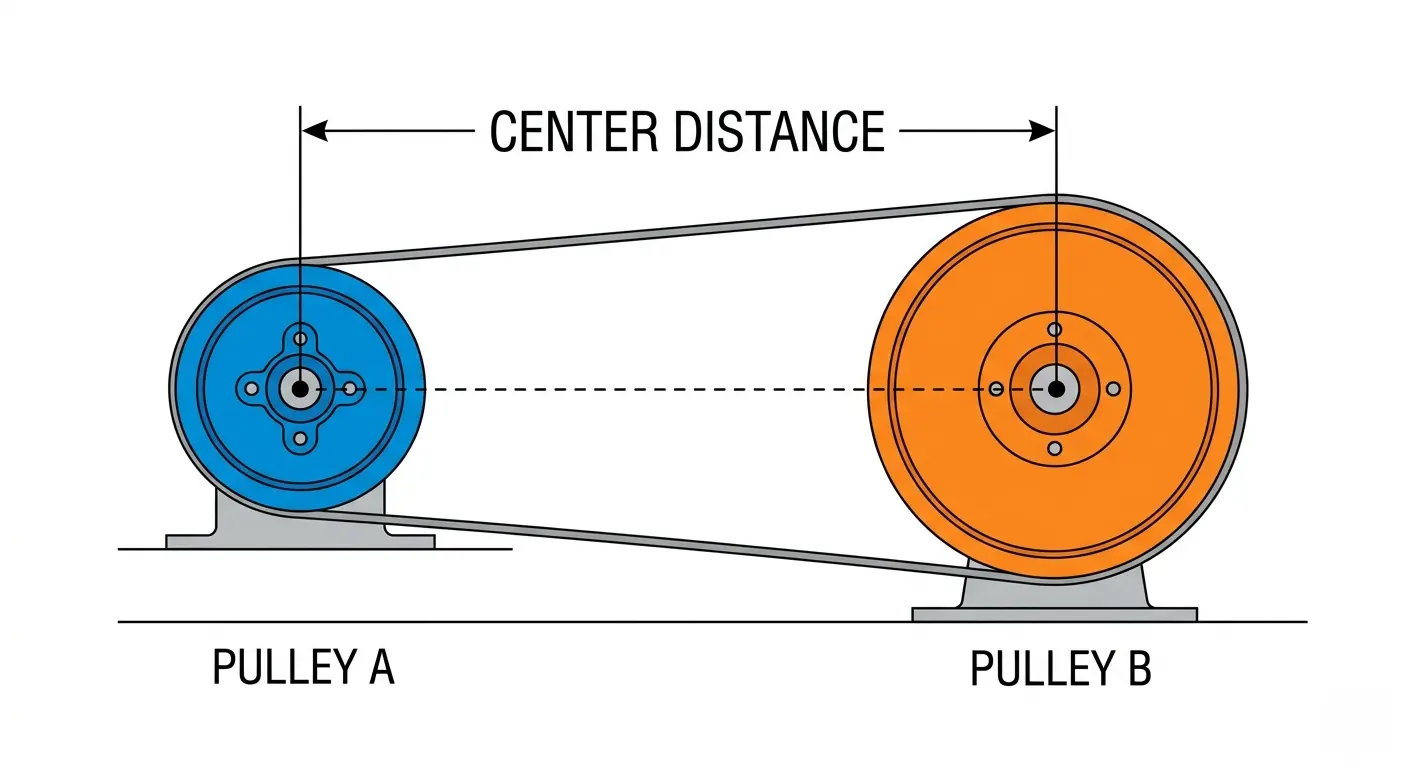

Pulley center distance is the distance between the centers of two pulleys in a belt drive system. This value is essential for calculating belt length accurately.
To understand how this measurement is used in calculations, read our belt length manual calculation guide.
Tools Required for Measurement
- Measuring tape
- Vernier caliper (for precision)
- Laser distance tool (advanced method)
Step-by-Step Measurement Method
Step 1: Identify Pulley Centers
Locate the exact center point of each pulley. This is typically the shaft center.

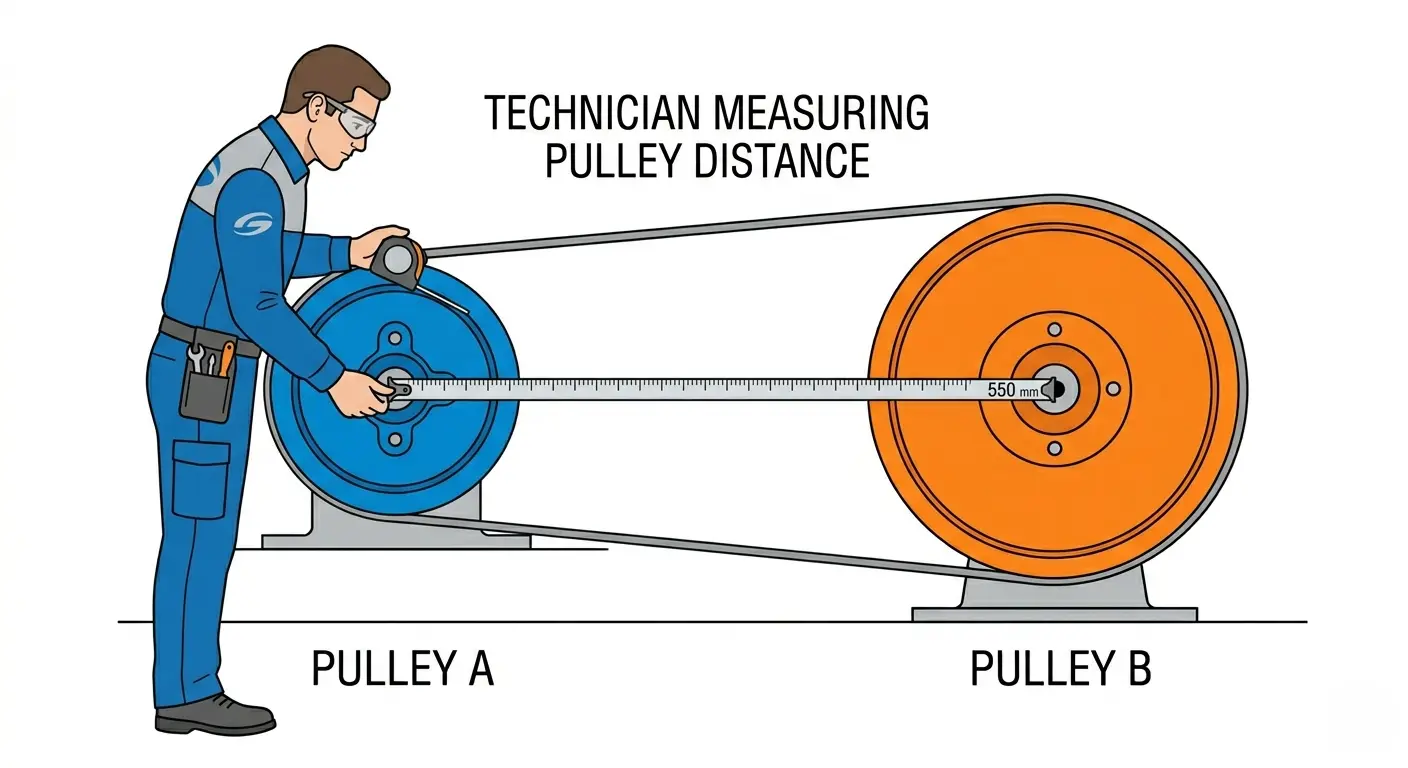

Step 2: Measure Center-to-Center Distance
Use a measuring tape or suitable precision tool to measure the distance between the pulley centers.
You can also see how these values are applied in a real calculation in this belt length calculation example.
Step 3: Verify Alignment
Ensure pulleys are aligned properly before taking final measurement.
Different Measurement Methods
Manual Method
Use a measuring tape directly between pulley centers.
String or Straightedge Method
A string or straightedge can be used as a reference when direct access to the pulley centers is difficult. Establish a reliable reference from the pulley shafts or centerlines, then measure the distance between the two centerlines rather than measuring around the pulley circumference.
Advanced Method
Use laser measurement tools for high precision in industrial setups.
Impact on Belt Length Calculation
Incorrect center distance leads to incorrect belt length, affecting performance.
Common Mistakes
- Measuring from pulley edge instead of center
- Ignoring alignment
- Using incorrect tools
Learn more in our belt calculation mistakes guide.
Practical Tips for Accurate Measurement
- Measure the center distance with the machine safely stopped and the belt removed or otherwise positioned according to the measurement procedure.
- Repeat the measurement to confirm consistency.
- Check pulley condition before relying on the measured dimensions.
Even with careful measurement, practical variations can occur. Learn more in our belt length formula accuracy guide.
FAQs
How do you measure pulley center distance?
Measure the distance between the centerlines of the two pulley shafts using a suitable measuring tape, straightedge, or precision distance tool. The measurement should represent the center-to-center distance rather than the distance around the pulleys.
Why is pulley center distance important?
Pulley center distance is an important input for belt length calculations. An incorrect measurement can result in an incorrect calculated belt length and may contribute to poor belt fit or improper tension.
What tools are best for accurate pulley center distance measurement?
A measuring tape can be suitable for basic measurements, while a precision distance tool, straightedge, or laser measurement device can provide better accuracy when the installation and access conditions require it.
Can incorrect pulley center distance affect belt performance?
Yes. An incorrect center-distance measurement can lead to an incorrect belt length calculation and may contribute to improper belt fit, incorrect tension, slippage, vibration, or accelerated wear.
Conclusion
Measuring pulley center distance correctly is essential for accurate belt length calculation. By following proper methods and avoiding common mistakes, you can ensure better system performance and reliability.
