Belt Speed Calculator

Q: How do you calculate belt speed?

Multiply π (3.1416) by the pulley diameter in meters and RPM, then divide by 60. The result is belt speed in meters per second.

Q: Does pulley size affect belt speed?

Yes. Belt speed increases as pulley diameter increases when RPM remains constant.

Q: Why is actual belt speed lower than calculated speed?

Actual belt speed may be lower because of belt slip, tension issues, alignment problems, or pulley wear.

Q: How do technicians measure belt speed?

Technicians commonly use laser tachometers, optical tachometers, or contact-type speed measuring devices.

Calculate belt speed instantly using pulley diameter and RPM values. Supports mm and inches, automatic unit conversion, belt slip compensation, and real-time results for conveyors, HVAC systems, pumps, and industrial belt-driven equipment.

Engineering Note: Belt speed directly affects conveyor throughput, airflow performance, belt wear, vibration levels, and overall machine efficiency.

Live calculation mm & inch support m/s · ft/min · km/h Slip compensation Mobile ready

Inputs

Enter your pulley diameter and rotational speed. Results update live.

Pulley Diameter in millimeters

Use the effective pulley diameter (pitch diameter for V-belts). Outside diameter measurements may produce slight calculation errors.

Rotational Speed (RPM) revolutions per minute

rpm

Advanced — Belt Slip Compensation

Belt Slip typical 0% – 3% in healthy systems

0.0%

Results Live

All values update instantly as you type. No calculate button needed.

Belt Speed

0.00m/s

Feet per minute

0ft/min

Kilometers per hour

0.00km/h

Effective speed (after slip)

0.00m/s

Speed loss

0.00%

Engineering interpretation: Enter values to see interpretation.

Speed Classification

Standard Industrial Range

Recommended Applications

HVAC Blowers • Industrial Fans • Medium-Speed Conveyors

What is Belt Speed?

Belt speed is the linear velocity at which a drive belt or conveyor belt travels around its pulleys. It is one of the most critical operating parameters in industrial machinery, it determines throughput on conveyors, airflow in HVAC blowers, surface speed on machine tools, and tension behaviour on V-belt and flat-belt drives. Knowing the correct belt speed is essential for sizing motors, selecting belts, preventing premature wear, and diagnosing vibration or slip issues.

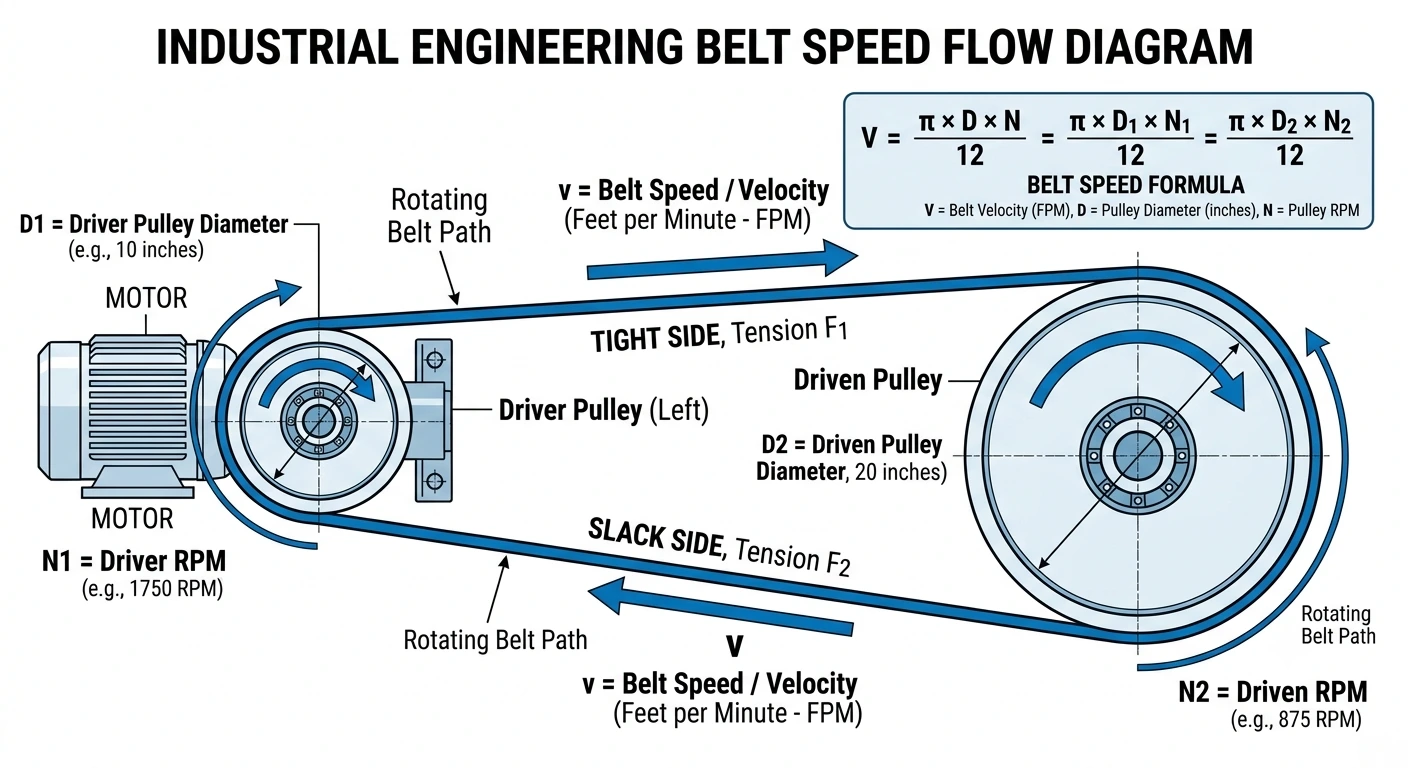

Belt Speed Calculator diagram showing pulley RPM and belt velocity calculation

In belt-driven systems, belt speed is controlled primarily by pulley diameter and rotational speed (RPM). Increasing either the pulley diameter or RPM increases belt velocity, which directly affects conveyor throughput, HVAC airflow, machine productivity, and overall system efficiency.

Because belt speed influences production output, airflow performance, energy consumption, and component life, it is one of the first values maintenance engineers verify during troubleshooting and performance optimization.

Belt Speed Formula

The belt speed formula calculates the linear velocity of a belt as it travels around a pulley. Maintenance engineers, HVAC technicians, and conveyor operators use this formula to determine conveyor throughput, airflow performance, and overall belt-drive efficiency.

Belt Speed (m/s) = (π × Pulley Diameter (m) × RPM) ÷ 60

Where:

π = 3.1416
Pulley Diameter = Effective pulley diameter in meters
RPM = Revolutions per minute
Belt Speed = Linear belt velocity in meters per second (m/s)

Example Belt Speed Calculation

A conveyor drive uses a 200 mm pulley rotating at 1450 RPM.

Pulley Diameter = 0.2 m
RPM = 1450

Belt Speed = (3.1416 × 0.2 × 1450) ÷ 60 = 15.18 m/s

Result: The belt travels approximately 15.18 meters every second. This speed is commonly found in HVAC blower systems, industrial fans, and medium-speed conveyor applications.

Belt Speed Unit Conversions

Feet per minute: ft/min = m/s × 196.85
Kilometers per hour: km/h = m/s × 3.6
Effective belt speed: m/s × (1 − slip%)

Engineering Note: Actual belt speed is often slightly lower than calculated belt speed because of normal belt slip, pulley wear, load variation, and operating conditions. In healthy industrial V-belt systems, slip values below 3% are generally considered acceptable.

Industrial Applications

Conveyor Systems

Industrial conveyor systems use belt speed to control material movement, production output, and conveyor efficiency. In manufacturing plants, mining facilities, warehouses, packaging lines, and cement industries, even small belt speed changes can significantly affect throughput, product flow, and operational performance.

Maintenance technicians frequently calculate belt speed during conveyor troubleshooting, pulley replacement, motor upgrades, and production optimization projects. Incorrect belt speed can cause material spillage, belt mistracking, bottlenecks, and reduced productivity.

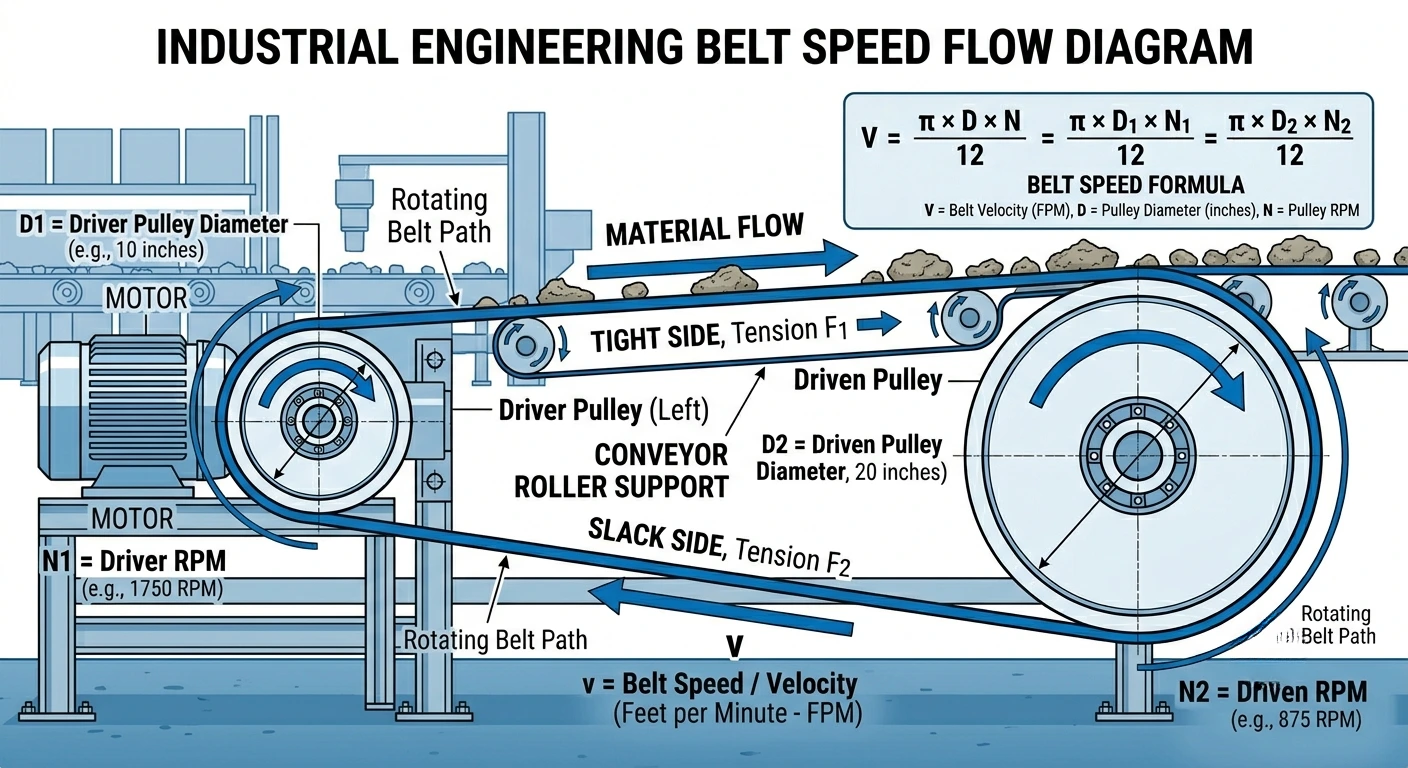

Industrial conveyor belt speed system showing pulley RPM and conveyor belt movement

HVAC Systems

In HVAC systems, belt speed directly affects blower airflow, cooling efficiency, ventilation stability, and motor performance. Air handling units, cooling towers, industrial exhaust fans, and commercial ventilation systems rely on proper belt speed to maintain design airflow requirements.

A small change in pulley diameter or fan RPM can significantly affect airflow performance, energy consumption, static pressure, and occupant comfort. HVAC maintenance teams commonly inspect belt speed when troubleshooting airflow imbalance, overheating problems, and unstable fan operation.

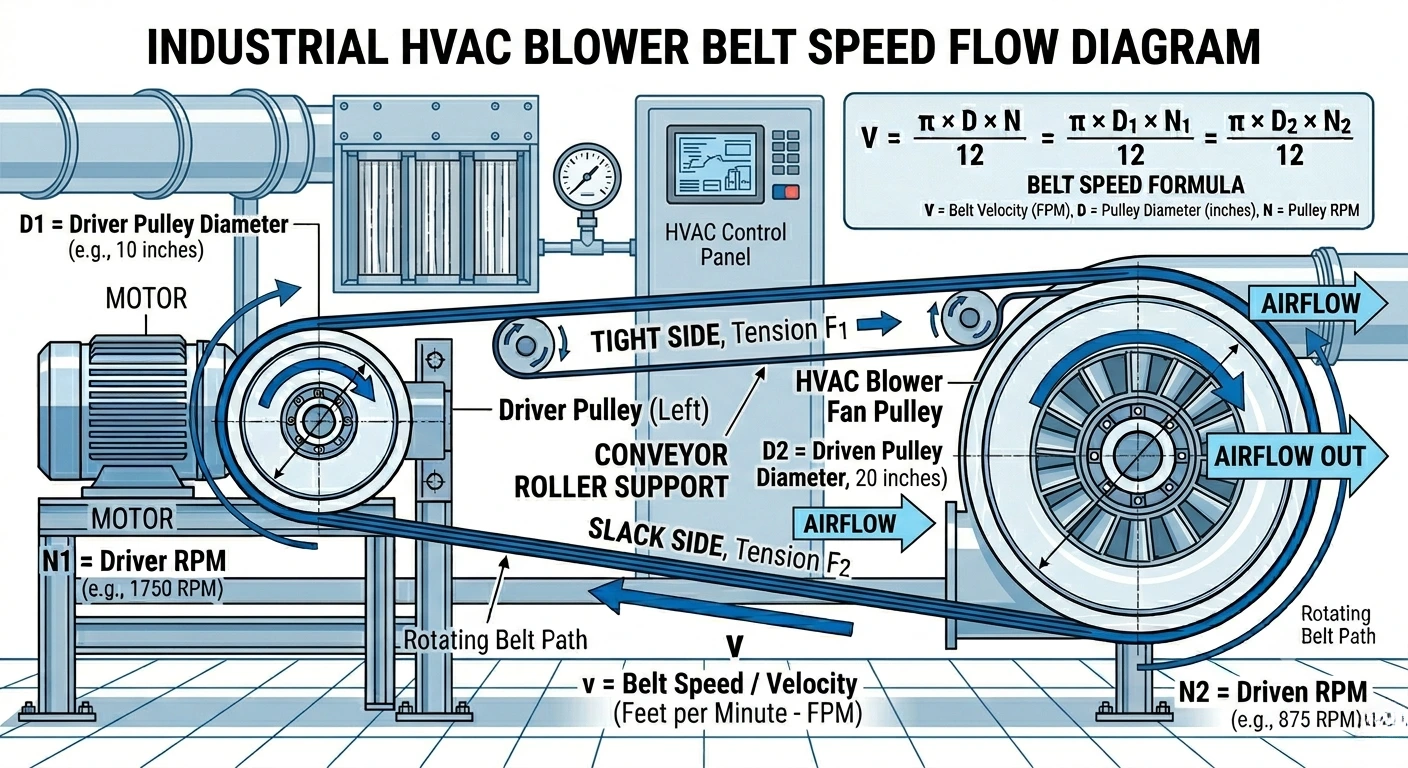

HVAC belt speed system showing blower fan pulley RPM and airflow movement

Machine Tools

Machine tools such as lathes, milling machines, grinders, and drill presses frequently use belt-driven systems to transfer power and control spindle speed. Correct belt speed helps maintain proper cutting conditions, surface finish quality, and tool life.

Excessive belt speed may increase vibration and heat generation, while insufficient speed can reduce machining efficiency and production rates.

Process & Manufacturing Equipment

Many industrial pumps, compressors, mixers, agitators, and processing machines rely on belt drives to transfer power between rotating components. Belt speed directly influences impeller tip speed, fluid movement, mixing performance, and overall equipment efficiency.

Engineers often verify belt speed during equipment commissioning, preventive maintenance inspections, and energy optimization projects to ensure machinery operates within its intended design range.

Common Belt Speed Problems

Belt Slip

Belt slip occurs when the actual belt speed becomes lower than the calculated belt speed. Common causes include insufficient belt tension, worn sheaves, contamination from oil or grease, and excessive loading conditions.

Typical symptoms include reduced efficiency, squealing noise, excessive heat generation, and lower-than-expected equipment performance.

Excessive Vibration

Excessive vibration can develop when belt speed matches a natural frequency within the machine structure or when pulleys become unbalanced. Misalignment and worn bearings can further amplify vibration levels.

Persistent vibration accelerates bearing wear, reduces belt life, and increases maintenance costs.

Premature Belt Wear

Operating above the recommended belt speed range increases heat generation and friction within the drive system. Over time this can cause belt glazing, cracking, edge wear, and reduced service life.

Routine inspection of belt condition and operating speed helps prevent unexpected failures.

Belt Mistracking

Conveyor belts may drift to one side when pulley diameters are inconsistent, alignment is poor, or belt tension is uneven. Mistracking can cause edge damage, material spillage, and conveyor downtime.

Correct pulley alignment and tension adjustment are essential for maintaining stable belt tracking.

Reduced Throughput

When actual belt speed falls below design values, conveyor output and process performance decrease. Common causes include motor overload, belt slip, incorrect pulley selection, and RPM loss under load.

Verifying RPM, pulley diameter, and actual belt speed helps identify the root cause of throughput reduction.

Maintenance Insight: Most belt-speed-related problems develop gradually. Regular monitoring of RPM, belt tension, pulley condition, and belt speed helps detect issues before they lead to costly downtime.

Troubleshooting Checklist

Use the following maintenance workflow when actual belt speed does not match calculated values or when conveyor, HVAC, and belt-driven equipment performance begins to decline.

Step 1 – Verify Actual RPM
Use a tachometer to confirm motor or shaft RPM under normal operating load conditions.

Step 2 – Measure Pulley Diameter
Measure the effective pulley diameter accurately. Incorrect pulley measurements are a common source of calculation errors.

Step 3 – Inspect Belt Tension
Check belt tension using a tension gauge or approved deflection method. Low tension often causes belt slip and reduced efficiency.

Step 4 – Check Pulley and Shaft Alignment
Inspect alignment using a straightedge or laser alignment tool. Misalignment increases wear and vibration.

Step 5 – Inspect Pulley Condition
Look for glazing, groove wear, contamination, or pulley damage that may affect belt performance.

Step 6 – Compare Calculated and Actual Belt Speed
Measure actual belt speed and compare it with calculated values. Significant differences typically indicate belt slip or mechanical issues.

Step 7 – Monitor Temperature and Vibration
Use thermal imaging and vibration monitoring tools to identify developing faults before failure occurs.

Troubleshooting Tip: Most belt-drive failures begin with small changes in RPM, tension, alignment, or belt speed. Early detection can significantly reduce downtime and maintenance costs.

Technician Tips

Always measure pulley diameter at the pitch line for V-belts — not the outside edge.
Replace matched-set V-belts together; mixing old and new causes uneven load sharing.
Re-tension new belts after the first 24–48 hours of operation.
Avoid belt dressings on synchronous (timing) belts — they trap debris.
Document baseline belt speed at commissioning for future trend analysis.

Frequently Asked Questions

How do you calculate belt speed?

Multiply π (3.1416) by the pulley diameter in meters by the rotational speed in RPM, then divide by 60. The result is the belt's linear speed in meters per second.

What is the belt speed formula?

Belt Speed (m/s) = (π × Pulley Diameter × RPM) ÷ 60. Diameter must be in meters; convert mm by dividing by 1000, or inches by multiplying by 0.0254.

Does pulley size affect belt speed?

Yes — belt speed is directly proportional to pulley diameter. A larger driver pulley at the same RPM produces a higher belt speed. This is the foundation of how V-belt drives change shaft speed ratios.

Why is actual belt speed lower than calculated speed?

The difference is caused by belt slip — micro-creep between the belt and pulley surface under load. Healthy V-belt drives typically slip 1–2%; values above 3% indicate tension, alignment or contamination issues.

What causes belt slip?

Common causes include insufficient tension, worn or glazed sheave grooves, oil or coolant contamination, overload conditions, and incorrect belt cross-section selection for the load profile.

How do technicians measure belt speed?

In the field, technicians use non-contact optical or laser tachometers pointed at a reflective marker on the pulley, or contact-type tachometers on the belt surface. The measured value is compared to the calculated belt speed to derive slip percentage.

What is a good belt speed for industrial equipment?

The ideal belt speed depends on the application. Conveyors commonly operate between 0.5 and 6 m/s, while HVAC blower systems and industrial fans may operate at significantly higher belt speeds depending on airflow requirements.

Does belt tension affect belt speed?

Yes. Low belt tension increases belt slip, which reduces actual belt speed and system efficiency. Proper tension helps maintain accurate speed transfer between pulleys.

Can belt speed be measured directly?

Yes. Technicians commonly use optical tachometers, laser measurement devices, and contact-type speed meters to verify actual belt speed in the field.

How does pulley diameter affect belt speed?

Belt speed increases as pulley diameter increases. At the same RPM, a larger pulley moves a greater belt length during each revolution.

What causes conveyor belt speed fluctuations?

Conveyor speed fluctuations are commonly caused by belt slip, motor load changes, pulley wear, incorrect tension, drive component wear, and inconsistent operating conditions.

What is the difference between belt speed and pulley RPM?

Pulley RPM measures rotational speed, while belt speed measures linear belt movement. Both values are related but represent different operating characteristics within a belt-drive system.
