Pulley Speed Ratio Formula Explained with Real Industrial Examples
Pulley Speed Ratio Formula is one of the most important calculations in belt driven systems, especially when you need to control speed between motor and machine. If your fan airflow is low or pump pressure is not correct, most of the time the issue is not the motor, it is the pulley ratio.
In real maintenance work, I have seen systems running inefficiently for weeks just because technicians did not calculate the correct ratio. The machine was working, but not performing. That is where tools like Pulley RPM Calculator help in quick and accurate adjustments.
This guide explains everything in a simple and practical way so you can apply it directly in real industrial environments.
What is Pulley Speed Ratio Formula
Pulley speed ratio formula defines how speed changes between driver pulley and driven pulley. It helps you understand whether speed will increase or decrease based on pulley size.
- If driven pulley is larger then speed decreases
- If driven pulley is smaller then speed increases
In Gulf industries, this is commonly used in HVAC systems where airflow depends on fan speed. Even a small mistake in ratio can reduce cooling efficiency.
Pulley Speed Ratio Formula Explained
The pulley speed ratio formula is simple and widely used:
Speed Ratio equals Driven Pulley Diameter divided by Driver Pulley Diameter
Another important relationship:
Driven RPM equals Driver RPM multiplied by Driver Diameter divided by Driven Diameter
This formula is used daily in maintenance work. To apply it faster, technicians often use pulley RPM calculator instead of manual calculation.
For better understanding, you should also learn how to calculate pulley RPM and belt drive RPM calculation.

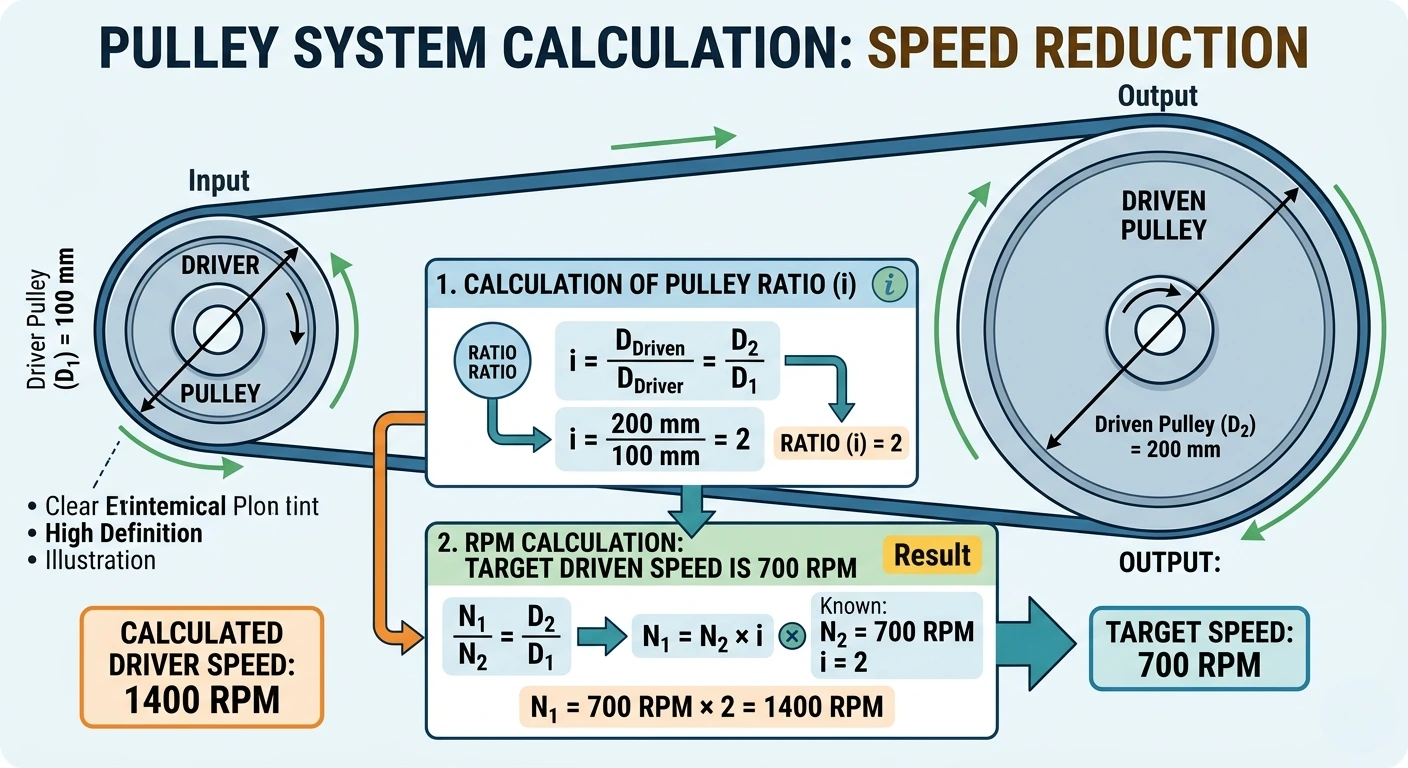

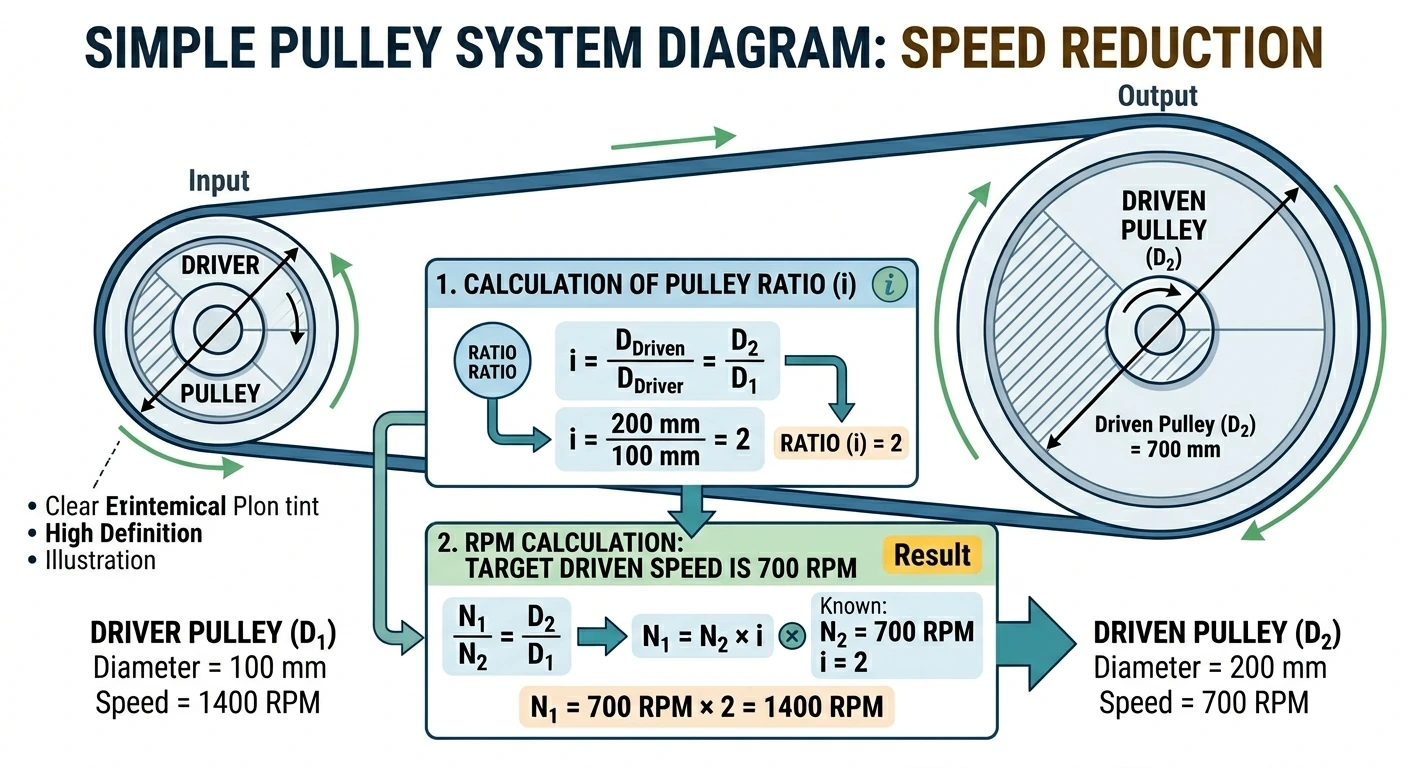

Step by Step Example Calculation
Let us take a real example:
- Motor speed is 1400 RPM
- Driver pulley is 100 mm
- Driven pulley is 200 mm
Driven RPM equals 1400 multiplied by 100 divided by 200
Final speed equals 700 RPM
This means speed is reduced to half.
Applications of Pulley Speed Ratio in Industry
Pulley ratio is used in almost every industrial setup:
- HVAC systems for fan speed control
- Water pumps for pressure adjustment
- Workshop machines for speed variation
- Conveyor systems for production flow
In real maintenance work, I have seen incorrect ratios causing overheating and reduced efficiency. To ensure system performance, you can also use Torque Calculator for load analysis.
Advanced topics like pulley systems in HVAC and motor pulley sizing guide are also important for system optimization.
Common Mistakes in Pulley Ratio Calculation
A common mistake I have seen is using nominal pulley size instead of actual measured diameter.
- Ignoring belt slip
- Wrong pulley measurement
- Incorrect alignment
- Not recalculating after replacement
These issues are closely related to belt slip and RPM loss and pulley alignment problems.
Troubleshooting and Practical Insights
In real industrial environments, troubleshooting is more important than theory.
- If airflow is low check pulley ratio first
- If vibration occurs check alignment
- If speed fluctuates inspect belt condition
Understanding pulley diameter vs RPM relationship helps in predicting system behavior before making changes.
Real-World Engineering Insight
In real maintenance work, pulley calculations are not just theoretical. I have worked on HVAC systems in Gulf plants where incorrect pulley ratio reduced airflow by almost 30 percent.
Technicians often focus on motor issues, but the real problem is usually speed mismatch. Correct pulley selection and calculation can improve efficiency without replacing equipment.
This is why using tools like pulley RPM calculator and understanding ratio formulas is critical in field conditions.
Practical Pulley Ratio Table
| Driver Pulley | Driven Pulley | Ratio | Use Case |
|---|---|---|---|
| 100 mm | 200 mm | 2 | Reduce fan speed |
| 150 mm | 150 mm | 1 | Same speed transfer |
| 200 mm | 100 mm | 0.5 | Increase machine speed |
Related Mechanical Calculators
- Pulley RPM Calculator
- Belt Length Calculator
- Torque Calculator
- how to calculate belt RPM – step-by-step method used in real maintenance work
Frequently Asked Questions
What is pulley speed ratio formula
It is the ratio between driven pulley size and driver pulley size.
How does pulley ratio affect speed
Larger pulley reduces speed and smaller increases speed.
Can I change speed without changing motor
Yes by changing pulley size.
Why is my RPM incorrect
Due to belt slip, wrong diameter or misalignment.
Is pulley calculator accurate
Yes but real conditions can slightly affect results.
