Pulley Diameter vs RPM Relationship Explained (Practical Guide for Technicians)
Pulley diameter vs RPM is one of the most important relationships technicians must understand when working with belt-driven systems. If you miscalculate this relationship, your machine will either run too fast or too slow, causing performance issues, overheating, or even equipment damage.
In real maintenance work, I’ve seen cases where a simple pulley size change improved system efficiency without touching the motor. This is exactly why understanding this relationship is critical for HVAC systems, pumps, conveyors, and workshop machines.
If you want accurate results instantly, you can also use our Pulley RPM Calculator to avoid manual errors.
What is the Relationship Between Pulley Diameter and RPM

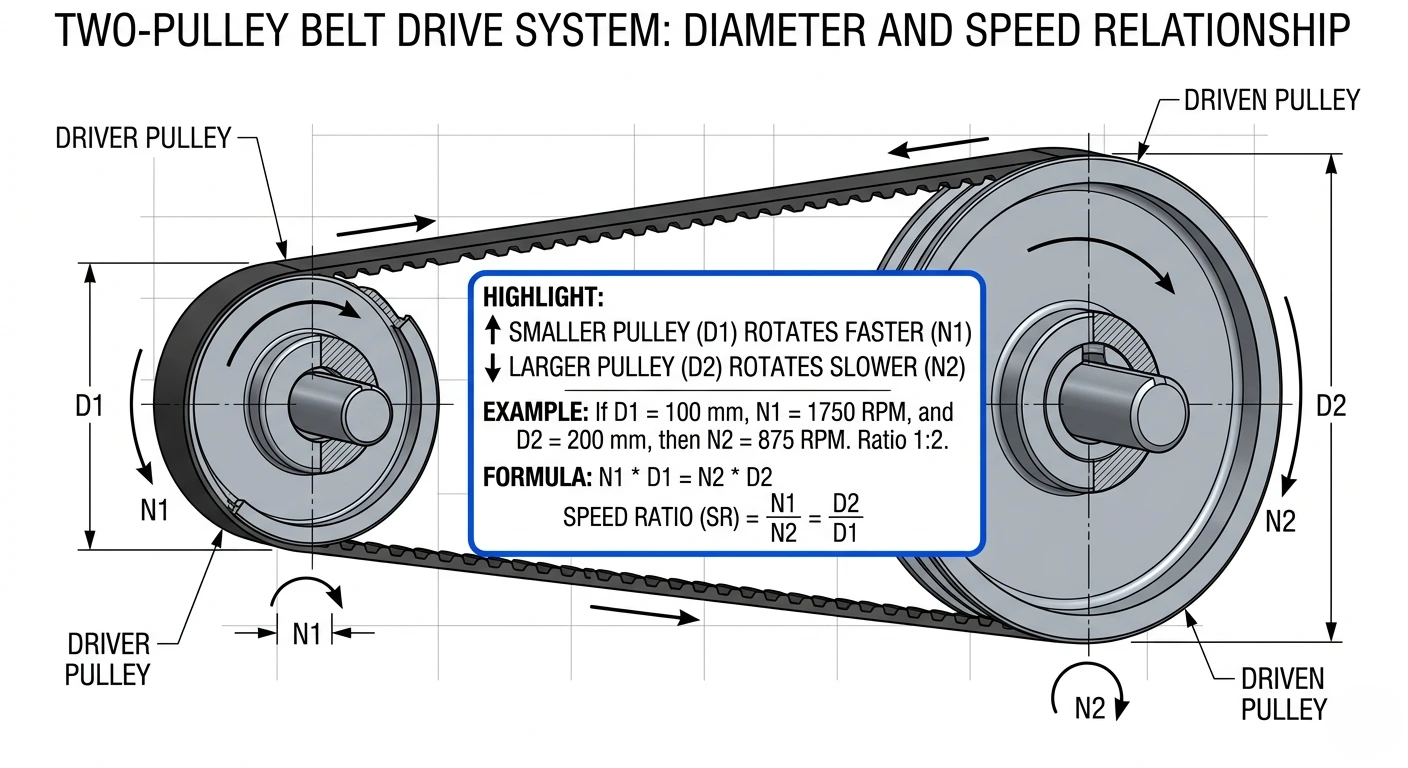

The relationship between pulley diameter and RPM is inversely proportional. This means when the pulley diameter increases, the RPM decreases, and when the diameter decreases, the RPM increases.
This principle works because the belt transfers motion based on circumference. A larger pulley travels more distance per rotation, so it rotates slower. A smaller pulley rotates faster to maintain the same belt speed.
- Smaller pulley → Higher RPM
- Larger pulley → Lower RPM
Technicians often use this principle to adjust speed without changing the motor. Instead of replacing expensive equipment, they simply change pulley size.
Pulley Diameter vs RPM Formula Explained
The relationship between pulley diameter and speed is calculated using a simple formula:
Driver RPM × Driver Diameter = Driven RPM × Driven Diameter
From this, you can calculate the driven RPM:
Driven RPM = (Driver RPM × Driver Diameter) ÷ Driven Diameter
This formula is the foundation of all belt-driven calculations. It is also explained in detail in pulley ratio explained and belt drive rpm calculation guide.
In real industrial environments, this formula helps technicians quickly adjust machine speed based on production needs.
This concept is closely related to our detailed guide on Pulley Speed Ratio Formula, where you can understand how pulley sizes affect speed in real systems.
Step-by-Step Example (Real Industrial Scenario)

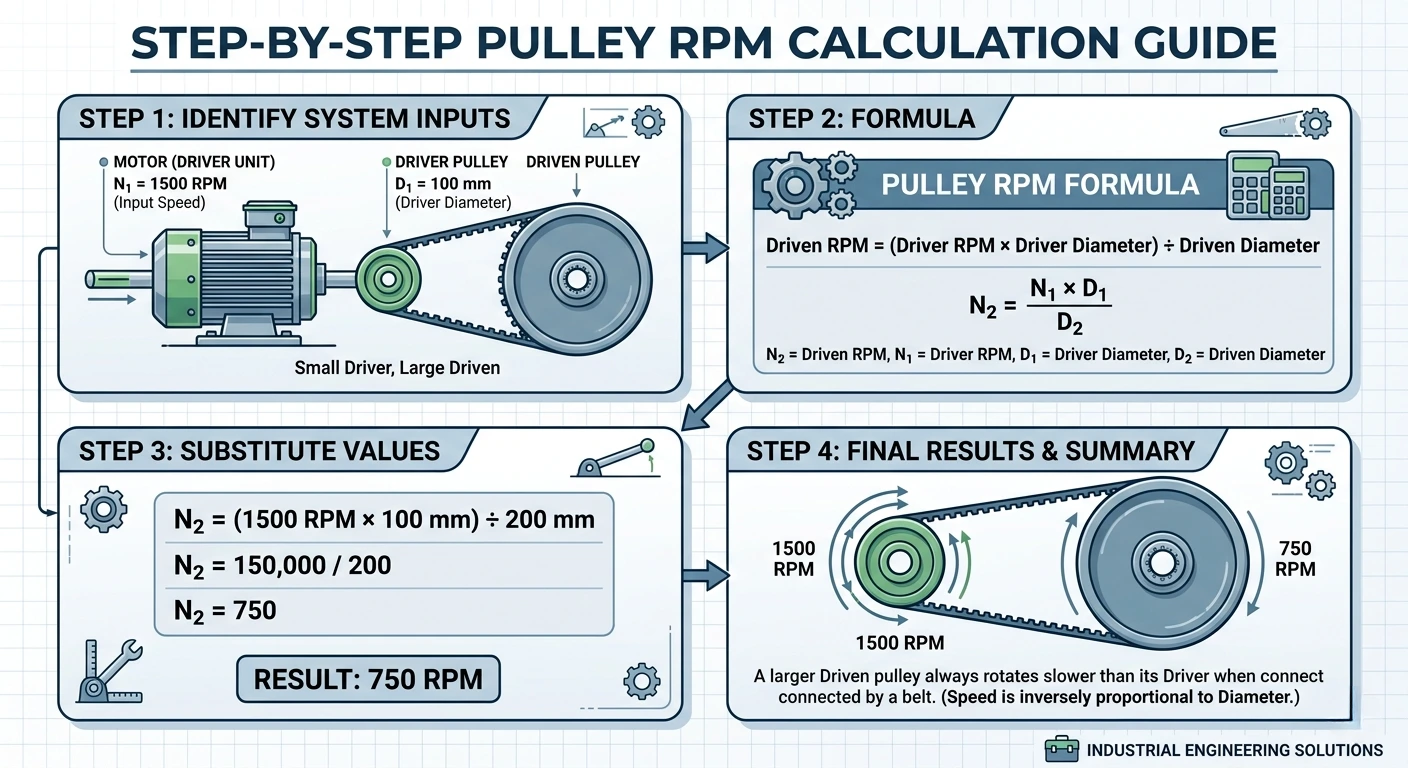

Let’s take a practical example from a workshop machine:
- Motor speed = 1500 RPM
- Driver pulley = 100 mm
- Driven pulley = 200 mm
Now apply the formula:
Driven RPM = (1500 × 100) ÷ 200 = 750 RPM
This means the output shaft rotates at 750 RPM, which is exactly half of the motor speed.
If you are new to calculations, follow our step-by-step guide on How to Calculate Pulley RPM for practical understanding.
In Gulf industries, this setup is commonly used in fan systems where lower speed is required for controlled airflow.
Where This Relationship is Used in Real Applications
The pulley diameter vs RPM relationship is widely used in different industrial systems:
HVAC Systems
Used to control fan speed and airflow. Incorrect pulley size can reduce cooling efficiency.
Water Pump Systems
Helps adjust pump speed to maintain proper pressure and flow rate.
Conveyor Systems
Controls belt speed and production output.
Workshop Machines
Used in drilling, cutting, and lathe machines to adjust operational speed.
Technicians often combine this with the Torque Calculator to ensure proper force and performance.
Common Mistakes Technicians Make
A common mistake I’ve seen in the field is assuming pulley size directly increases power. That is incorrect. Pulley size changes speed, not motor power.
- Using nominal diameter instead of actual diameter
- Ignoring belt slip
- Incorrect pulley alignment
- Wrong tension setup
These mistakes lead to incorrect RPM calculations and poor machine performance.
For deeper understanding, refer to driver vs driven pulley guide and common pulley mistakes article.
Troubleshooting RPM Issues in Real Systems
Even if your calculation is correct, real-world results may differ due to several factors.
- Belt slippage reduces actual RPM
- Pulley wear changes effective diameter
- Misalignment causes vibration and speed loss
- Improper tension affects efficiency
In real maintenance work, always verify RPM using a tachometer instead of relying only on calculations.
You can also analyze issues using belt slip and rpm loss guide and pulley alignment problems guide.
Quick Reference Table for Pulley Diameter vs RPM
| Driver Pulley | Driven Pulley | Ratio | Use Case |
|---|---|---|---|
| 100 mm | 200 mm | 2 | Reduce fan speed |
| 150 mm | 150 mm | 1 | Same speed transfer |
| 200 mm | 100 mm | 0.5 | Increase machine speed |
Real-World Engineering Insight
In real maintenance work across Gulf industries, pulley size adjustments are often the fastest way to fix performance issues without replacing expensive motors.
I’ve personally seen technicians solve airflow problems in HVAC systems just by adjusting pulley diameter instead of replacing the entire unit.
The key is understanding when to increase speed and when to reduce it based on system requirements.
Always measure actual pulley diameter and verify RPM after installation. Small errors can lead to large performance losses.
