Pulley Ratio Explained: How It Controls Speed and Torque in Real Machines

Pulley Ratio Explained is one of the most important concepts technicians use when working with belt-driven systems. In real maintenance work, incorrect pulley ratio can cause low airflow, poor pump performance, or even overheating of equipment.

Instead of guessing, you can quickly verify system speed using the Pulley RPM Calculator. This helps ensure your pulley selection delivers the correct output RPM before making physical changes.

What is Pulley Ratio in Simple Terms

Pulley ratio is the relationship between the diameter of the driver pulley connected to the motor shaft and the driven pulley connected to the output shaft. This ratio determines how speed and torque are transferred through the belt.

In simple terms:

  • Small driver + large driven pulley = speed decreases, torque increases
  • Large driver + small driven pulley = speed increases, torque decreases

This concept is widely used in HVAC systems, pumps, compressors, and conveyor machines.

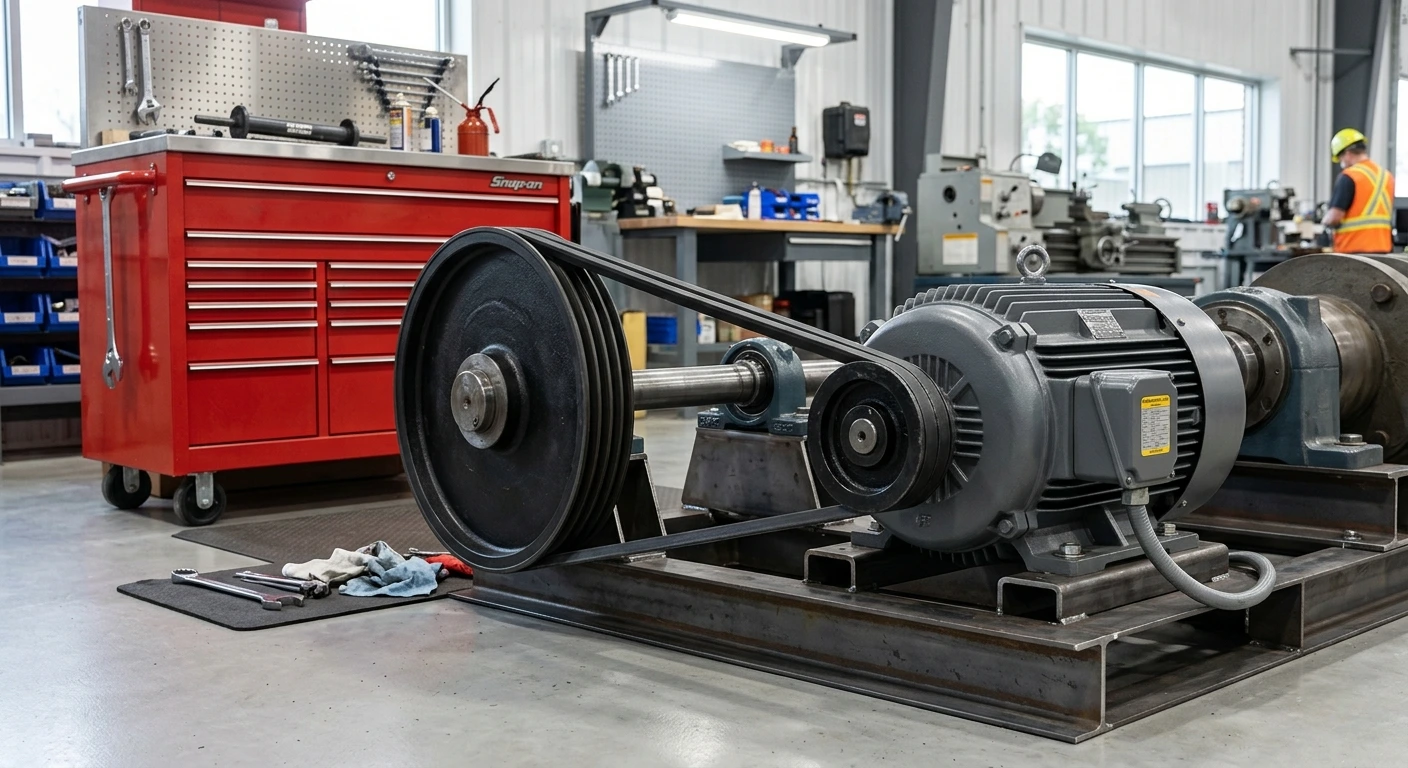

pulley ratio explained belt drive system with motor and pulleys

How Pulley Ratio Affects RPM and Machine Performance

When a motor rotates, it transfers motion through the belt to the driven pulley. The change in pulley diameter directly changes RPM. This is why pulley ratio plays a key role in system performance.

The relationship is defined by:

Driver RPM × Driver Diameter = Driven RPM × Driven Diameter

Technicians often use this formula along with real measurements to avoid mistakes. For step-by-step calculation, you can also follow how to calculate belt RPM to get accurate results in field conditions.

Practical Example from Real Maintenance Work

Let’s take a real example:

  • Motor speed = 1440 RPM
  • Driver pulley = 100 mm
  • Driven pulley = 200 mm

Using the formula:

Driven RPM = (1440 × 100) ÷ 200 = 720 RPM

This setup is commonly used in HVAC systems to reduce fan speed and improve efficiency.

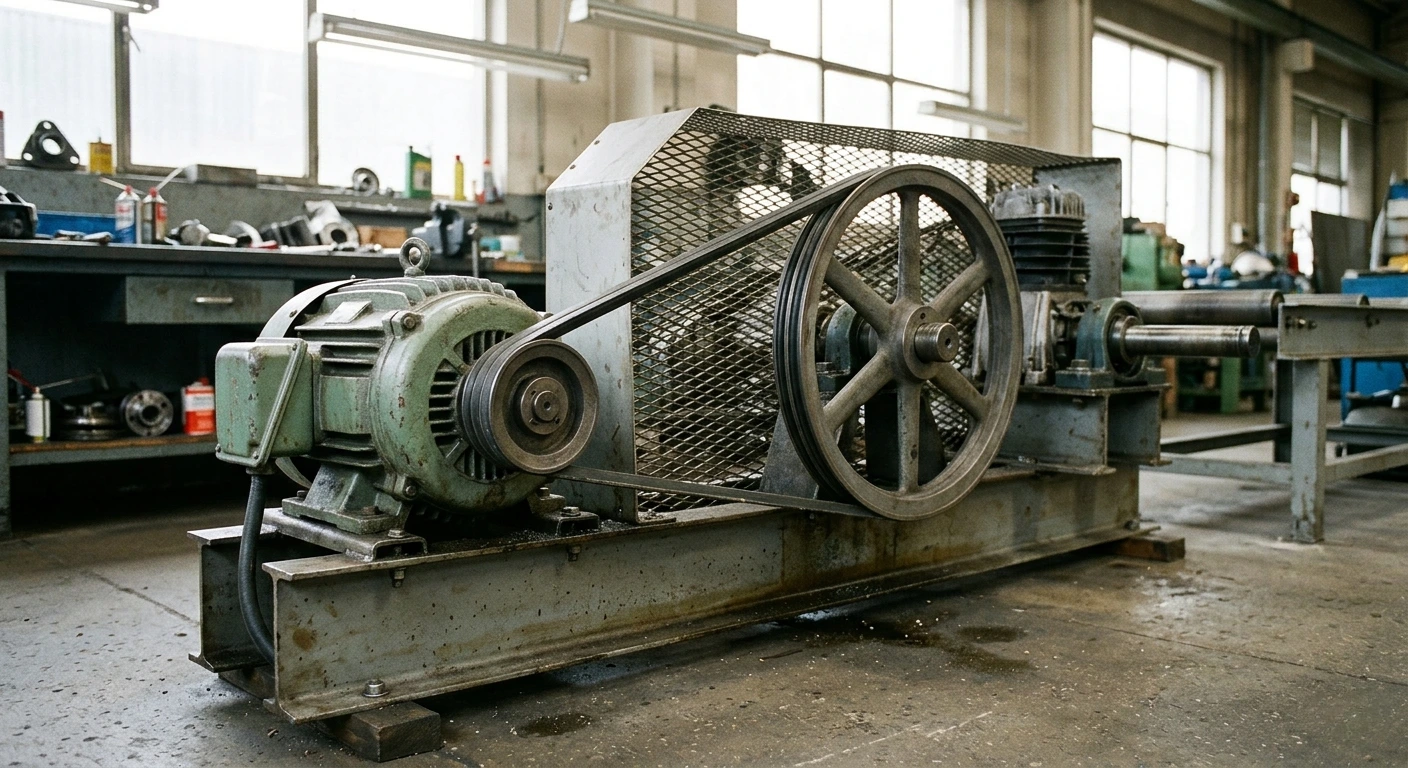

belt drive pulley ratio speed reduction example

Quick Pulley Ratio Reference Table

Driver Pulley Driven Pulley Ratio Use Case
100 mm 200 mm 2 Reduce fan speed
150 mm 150 mm 1 Same speed transfer
200 mm 100 mm 0.5 Increase machine speed

Where Pulley Ratio is Used in Industry

In Gulf industries, pulley systems are used in almost every rotating equipment:

  • HVAC systems to control airflow
  • Water pumps to adjust pressure and flow rate
  • Conveyor systems to regulate production speed
  • Workshop machines like drills and lathes

In many cases, technicians also need to check torque impact when changing speed. For that, you can use the Torque Calculator to understand load behavior after RPM changes.

Common Mistakes That Affect Pulley Ratio

In real maintenance environments, these mistakes are very common:

  • Using nominal pulley size instead of actual measured diameter
  • Ignoring belt slip under load
  • Wrong pulley replacement without recalculation
  • Misalignment causing uneven belt wear

A common mistake I’ve seen is technicians focusing only on motor speed without considering pulley ratio, which leads to incorrect output performance.

Troubleshooting Pulley Ratio Problems

If your system is not performing correctly, follow this checklist:

  • Measure actual pulley diameters
  • Check belt tension and condition
  • Inspect pulley wear and grooves
  • Verify shaft alignment
  • Recalculate RPM after any adjustment

To calculate correct belt size along with RPM, you can also use the Belt Length Calculator to avoid installation issues.

For deeper understanding, you should also learn pulley alignment procedure, belt tension adjustment guide, shaft speed calculation basics, belt slip troubleshooting, and industrial pulley maintenance checklist.

Real-World Engineering Insight

In Gulf industrial plants, especially during shutdown maintenance, pulley ratio adjustments are one of the fastest ways to fix system performance issues.

I’ve worked on HVAC systems where cooling dropped significantly. The issue was not the motor, but incorrect pulley sizing. After correcting the pulley ratio, airflow improved immediately without replacing any major components.

Technicians should always think in terms of system balance:

  • Motor speed
  • Pulley size
  • Belt condition
  • Load requirement

Even a small pulley change can completely transform system performance.

Frequently Asked Questions

What is pulley ratio?
It is the relationship between driver and driven pulley sizes that determines speed change.

How does pulley ratio affect speed?
Larger driven pulley reduces speed, while smaller driven pulley increases speed.

Can pulley ratio change torque?
Yes, reducing speed increases torque and increasing speed reduces torque.

Why is actual RPM different from calculated RPM?
Due to belt slip, wear, or misalignment.

Is pulley ratio important in maintenance work?
Yes, it directly affects machine efficiency and performance.
